TT-316 Sit-down Tow Tractor

The TT-316 tow tractor is a highly maneuverable electric tow tractor with up to 16,000 lb load capacity that competes as an effective alternative to forklifts for horizontal material handling.

Engineered for modern safety, ergonomic comfort and proven reliability in today’s demanding operations, the TT-316 will demonstrate:

Modern Safety You Can Trust

Safety is built into every detail of the TT-316. A controlled maximum speed of 6 mph ensures safe operation, while a high-visibility light bar, headlights, taillights and brake lights enhance awareness in busy environments. Key features like the operator presence sensor, emergency shut-off, reverse beeper, and horn provide added layers of protection.

The TT-316 also meets Type E OSHA 1910.178 and ANSI B5 safety standards, making it a reliable choice for workplace compliance and peace of mind.

Engineered for Operators

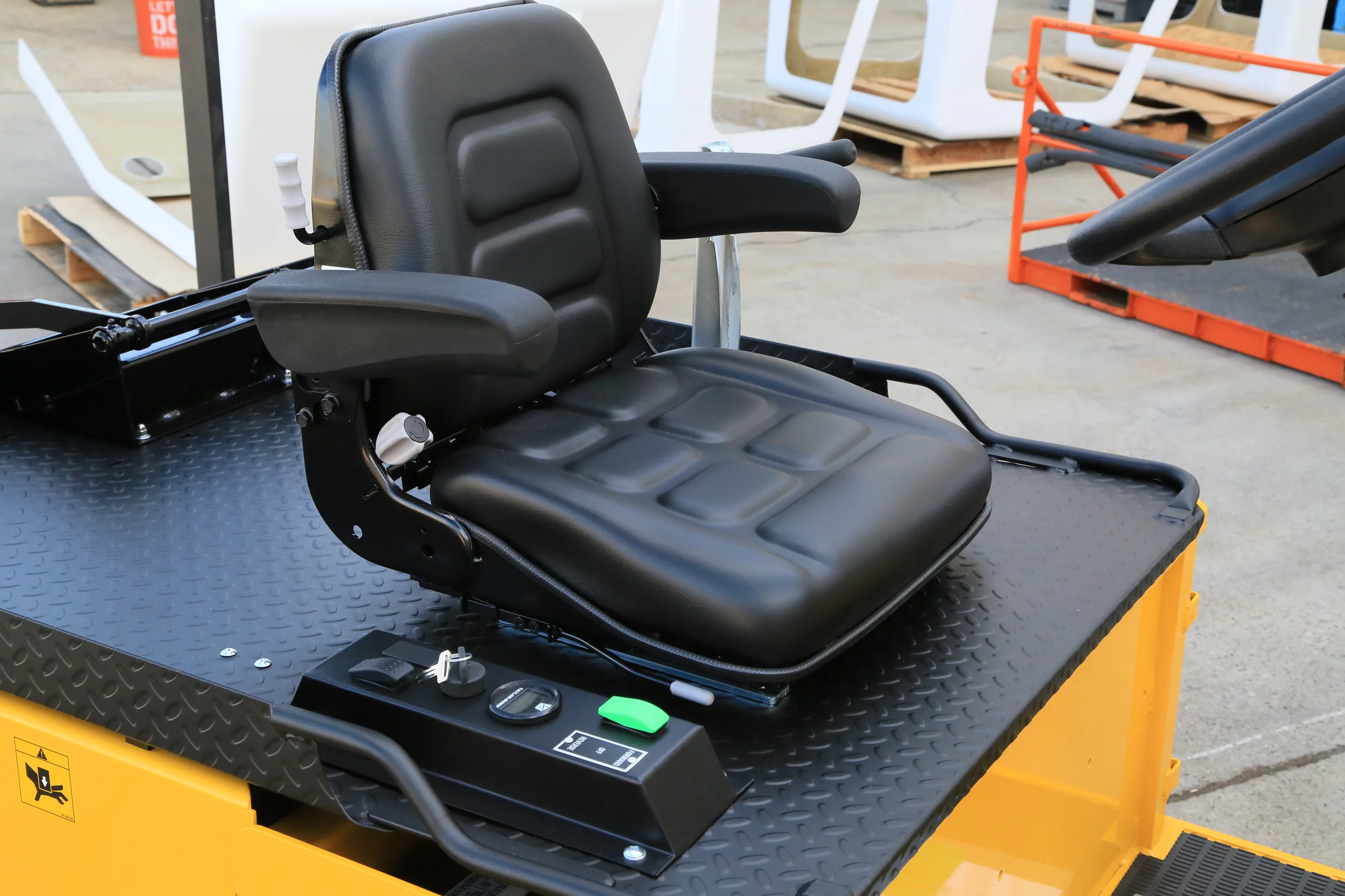

Designed with the operator in mind, the TT-316 features a spring-loaded, adjustable seat and a tilt-and-telescopic steering wheel to accommodate a wide range of operator sizes. A low 10.5” step height allows for easy entry and exit, while front and rear suspension ensure a smooth, stable ride.

Built to Last

PERFORMANCE
Load Capacity
400 lb / 182 kg
Tow Capacity
16,000 lb / 7,257 kg
Drawbar Pull
320 lb / 1.42 kN
Max Speed (Unloaded)
6 mph / 9.6 km /h
Turning Radius
74.5 in / 189 cm
DIMENSIONS
Overall Length
83 in / 211 cm
Overall Width
39.5 in / 100 cm
Overall Height
54 in / 138 cm
Wheel Base
55 in / 140 cm
Deck Size (WxL)
38 x 25 in / 96.5 x 63.5 cm
Deck Height
29 in / 74 cm
POWER SUPPLY / DRIVE TRAIN
Motor
7.5 HP AC
Battery
Battery-less from Factory – Fits 36V Industrial batteries
Battery Compartment Size (WxLxH)
38 x 16 x 15 in / 96 x 40 x 38 cm
Battery Weight Limits (Max/Min)
1,250 lbs / 500 lbs ; 567 kg / 227 kg
Battery Connector Type
SB350 Gray
Battery Lead Position
A
Battery Lead Length
30 in / 76 cm
Charger
Off-Board Charging
CHASSIS
Frame
Fully Welded, Unitized, 10 Gauge
Steering
Tilt/Telescoping Gear Steering
Suspension
Front Coil Springs, Rear Leaf Springs
Brakes
3-Wheel Hydraulic Disc, Automatic/Electric Parking Brake
Tires
4.80 x 8, Load Range C, Pneumatic
GENERAL
Maximum Occupancy
1 / 250 lb / 113 kg
Unit Weight
1,150 lb / 522 kg
Seat
Single, Adjustable, Black Vinyl, with Spring Suspension, Operator Presence Switch
Instrumentation
LCD Multi-Function Dash Display, Forward / Reverse Selector, Key Switch, Electric Horn, Reverse Alarm, DC/DC Converter
Light Accessories
LED Headlight, Taillight, Brake Light, Optional Light Bar with Reverse, Strobe and Brake Light
Conformance
Type E OSHA 1910.178, ANSI B56.9

*Battery pack, payload, towing, and charger type will impact range and charge time.

FAQs

The Taylor-Dunn TT-316 Electric Tow Tractor significantly reduces labor requirements compared to forklifts like order pickers, reach trucks, or counterbalance lifts in warehouse and manufacturing operations. The TT-316 Tow Tractor can tow multiple trailers with one operator, while a forklift can only move one pallet at a time with one operator. This material handling efficiency frees up valuable labor for other critical tasks in manufacturing, distribution, and warehousing facilities.

The Taylor-Dunn TT-316  provides superior safety compared to forklifts in several ways. The TT-316 reduces warehouse traffic since one tow tractor can move the same amount of material as several forklifts. This OSHA-compliant tow tractor offers exceptional stability and 360-degree visibility, while forklifts have limited sight lines and elevated centers of gravity that reduce stability. Unlike forklifts, the all-electric TT-316 eliminates risks of fork strikes and hydraulic system injuries.

The Taylor-Dunn TT-316 Tow Tractor costs significantly less to purchase and operate than comparable forklifts. The TT-316 Tow Tractor has minimal maintenance and lower operating costs throughout its lifespan. Customers typically save an average of $20,000 per TT-316 during the 4-year factory warranty period compared to many industrial forklifts, making it an excellent ROI for material handling operations.

The Taylor-Dunn TT-316 accommodates any 36V industrial battery that fits within the battery compartment specifications. Waev’s network of 400+ authorized Taylor-Dunn dealers can help source the right battery and charger for your TT-316 Tow Tractor operation. Battery compartment dimensions: 38 x 16 x 15 inches (96 x 40 x 38 cm). Battery weight limits: 500-1,250 lbs (227-567 kg).

The Taylor-Dunn TT-316 is rated to tow up to 16,000 lbs (7257 kg), powered by a 7.5 HP (5.6 kW) AC motor with direct drive double reduction transaxle, equipped with 3-wheel hydraulic disc brakes. The TT-316’s maximum towing capacity assumes clean, dry, level surfaces like brushed concrete. Grades, road conditions and/or uneven surfaces will affect the towing capacity of the TT-316 Tow Tractor. Contact your local Taylor-Dunn dealer for site-specific towing capacity questions.

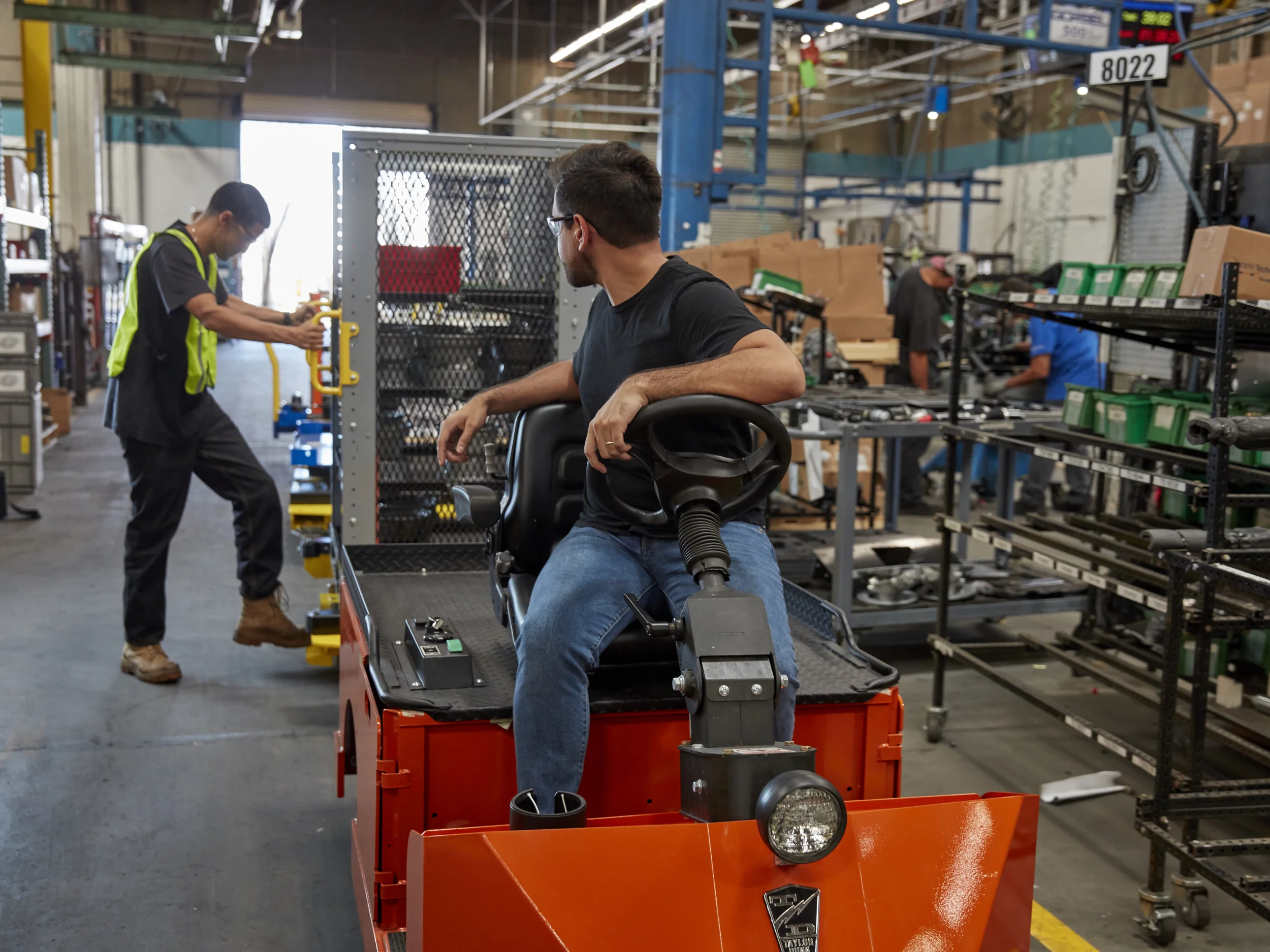

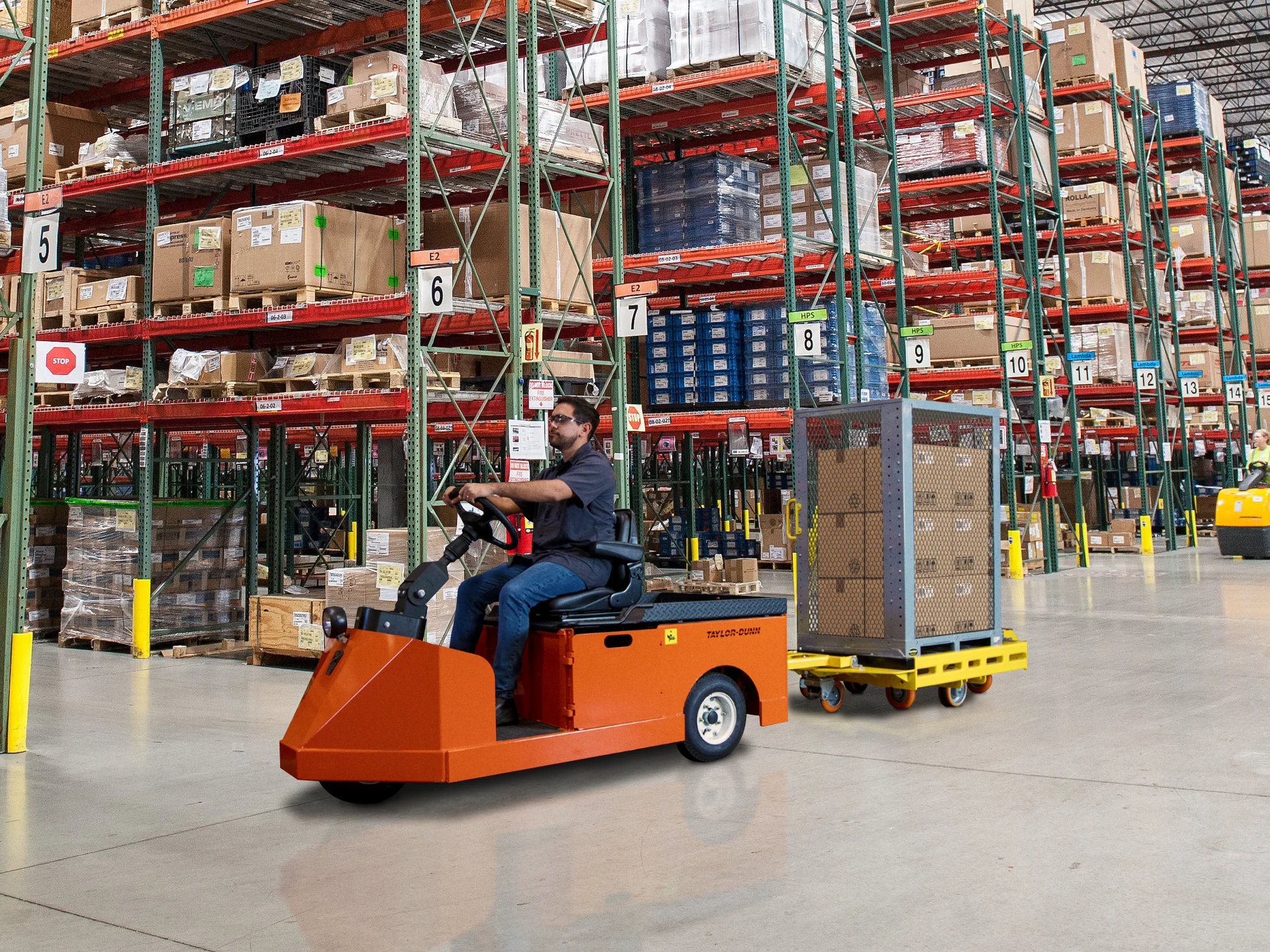

The Taylor-Dunn TT-316 Tow Tractor is ideal for warehouses, distribution centers, manufacturing facilities, airports, hospitals, and retail operations requiring efficient horizontal material handling. The TT-316 Tow Tractor excels in applications where multiple trailer towing improves productivity over traditional forklift operations.

The Taylor-Dunn TT-316 tow tractor is ideal for warehouses, distribution centers, manufacturing facilities, airports, hospitals, and retail operations requiring efficient horizontal material handling. The TT-316 tow tractor excels in applications where multiple trailer towing improves productivity over traditional forklift operations.
