BIGFOOT BURDEN CARRIERS

Big payload and big towing for your biggest jobs

The core DNA of a Bigfoot burden carrier is safety, durability, and versatility. Built to haul and tow more than a standard pickup truck, yet nimble enough for tight turns in smaller facilities, it’s no wonder Bigfoot burden carriers are the silent workhorse in industrial and commercial operations across the globe. They’re there, hard at work behind the scenes, even if you don’t see them.

NEW_2

Bigfoot S

Compact burden carrier with tighter turns for smaller facilities and pathways.

Full specs below.

Optional Accessories fold-away seats, second row seats, eco cab with vinyl doors, strobe light pole, battery watering system, non-marking tires, pintle hitch, stake sides, and aluminum drop sides.

Bigfoot

Our flagship burden carrier with big payload and big towing.

Full specs below.

Optional Accessories fold-away seats, second row seats, eco cab with vinyl doors, deluxe steel cab with steel doors, strobe light pole, battery watering system, non-marking tires, pintle hitch, rear steel box with doors, diamond plate deckboard, stake sides, and aluminum drop sides.

Liion
Liion

Bigfoot XL

The ultimate workhorse for your most demanding jobs.

Full specs below.

Optional Accessories fold-away seats, second row seats, eco cab with vinyl doors, deluxe steel cab with steel doors, strobe light pole, battery watering system, non-marking tires, diamond plate deckboard, pintle hitch, stake sides, and aluminum drop sides.

Why Bigfoot

Seven reasons to choose a Taylor-Dunn Bigfoot burden carrier:

Low speeds, low step heights, lighting accessories, emergency shut-off switches and shut-off timers improve visibility and workplace safety.

Our burden carrier frames are constructed with heavy-duty 12 gauge steel for long-term superior durability.

Our Bigfoot and Bigfoot S burden carriers come in at a trim 44 in. wide while the Bigfoot S has a nimble 115 in. turning radius—optimal for narrow aisles and pathways.

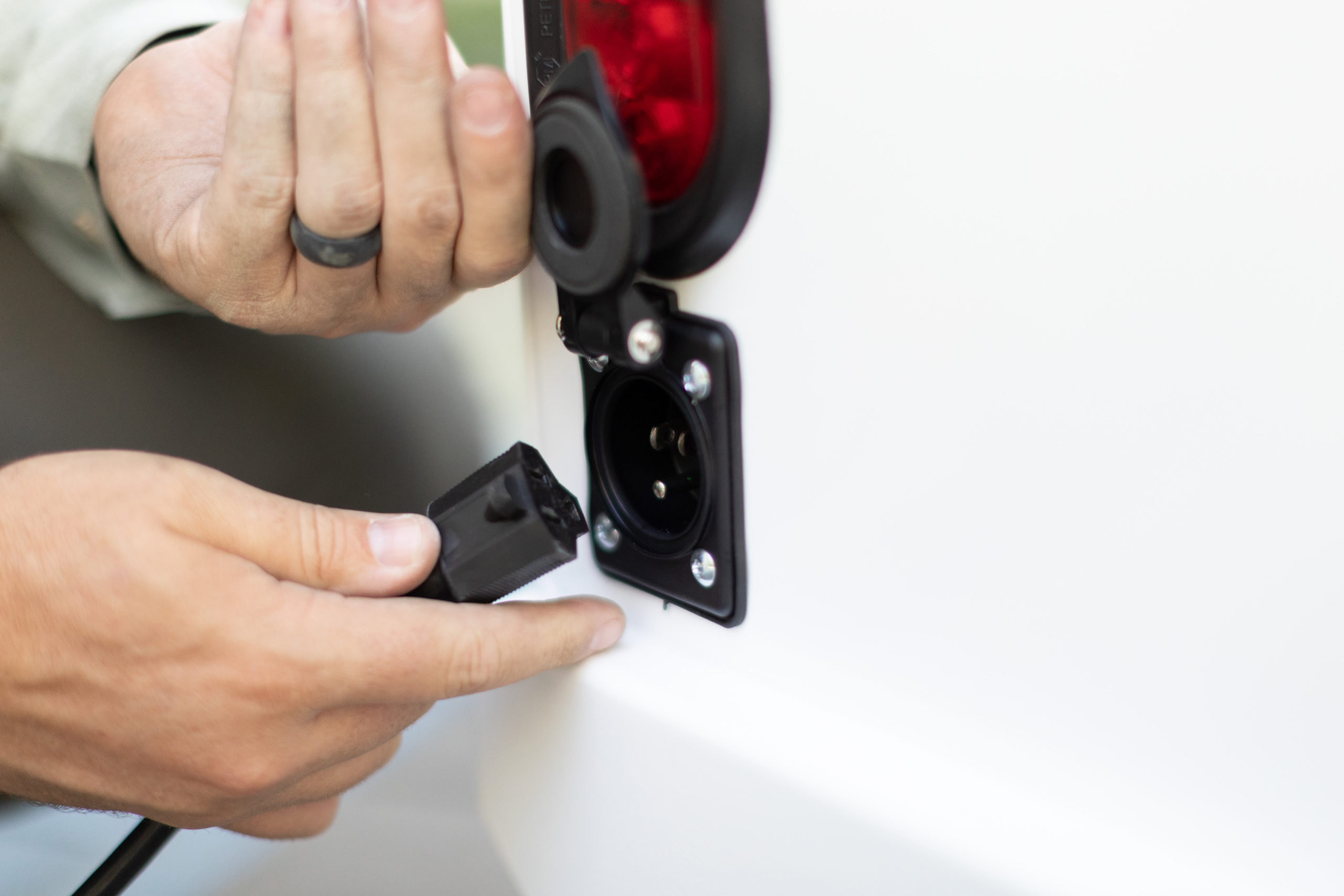

Easily charge using a traditional 110-volt shop wall outlet.

Zero carbon emissions enable organizations to meet their sustainability goals without sacrificing productivity.

With up to 3,000-lb load capacity and 10,000-lb towing capacity, our Bigfoot burden carriers rival the average pickup truck at a fraction of the price and size.

Large operator compartments with adjustable seats and footrests maximize worker comfort.

Our Bigfoot burden carriers are powerful enough for airports and railyards, quiet enough for resorts guests, sustainable for campuses and parks and recreation, and nimble enough for narrow-aisle facilities and convention centers.

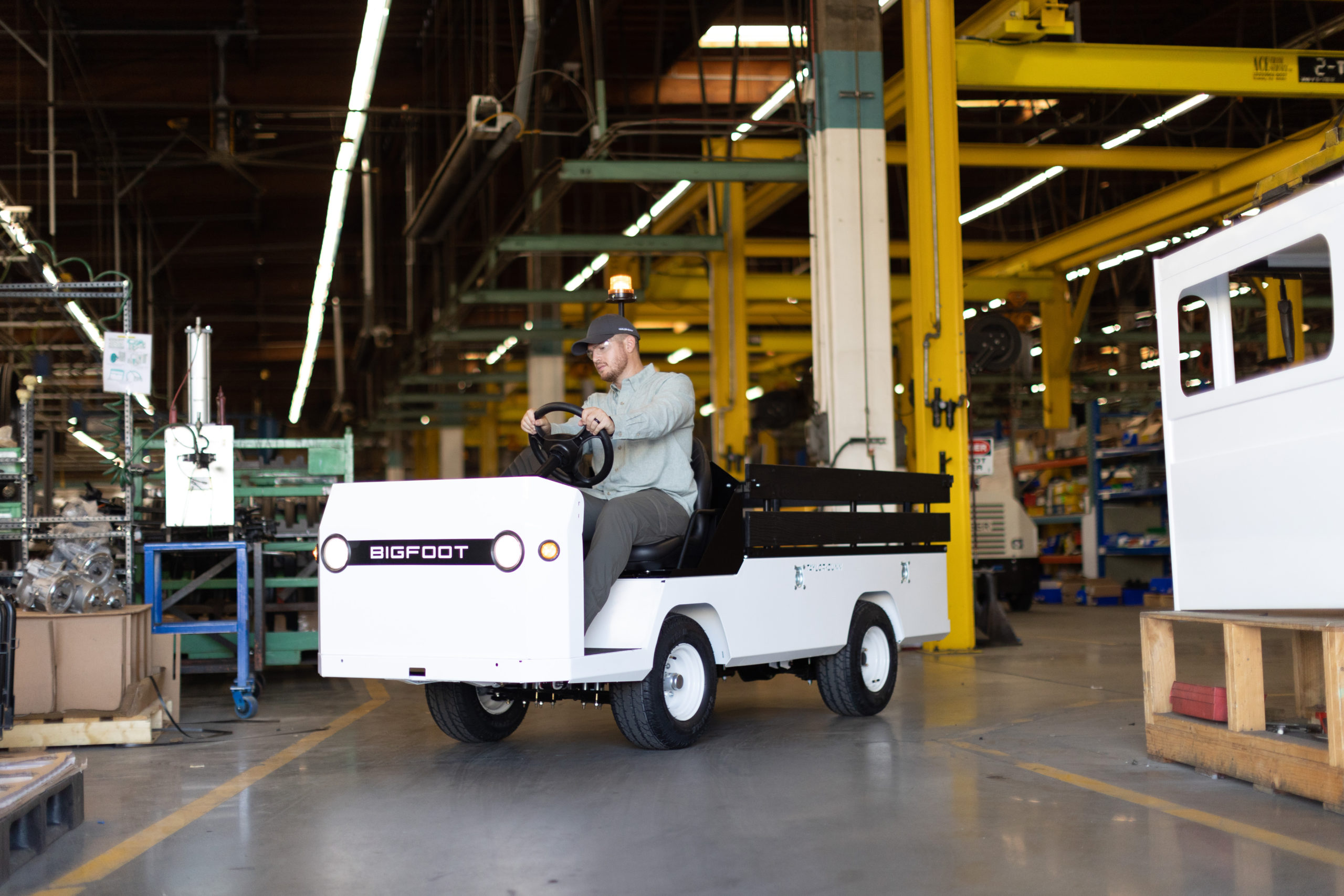

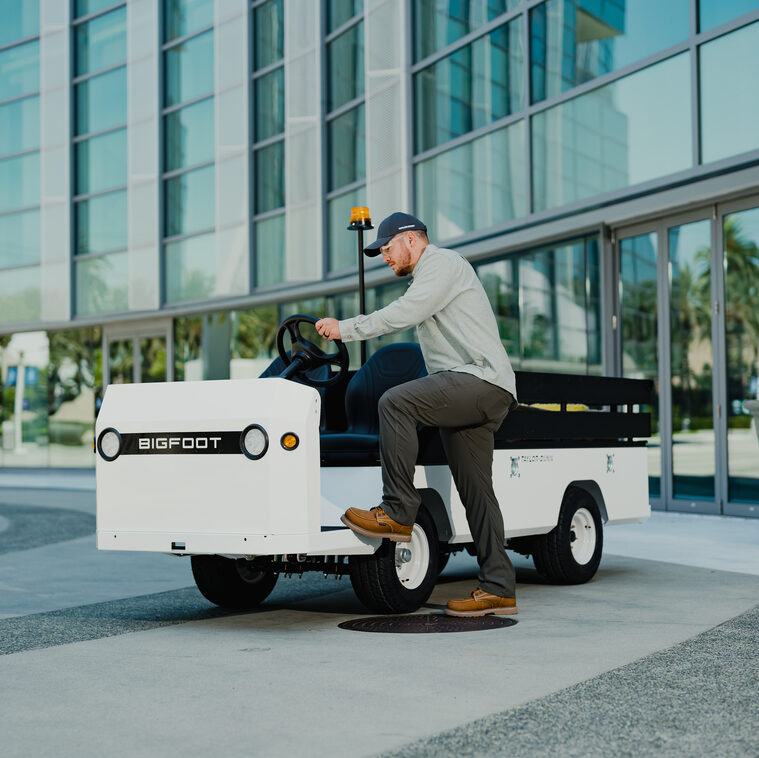

Bigfoot utility vehicle

Considering Li-Ion?

Explore the benefits of adding lithium-ion batteries to your Bigfoot

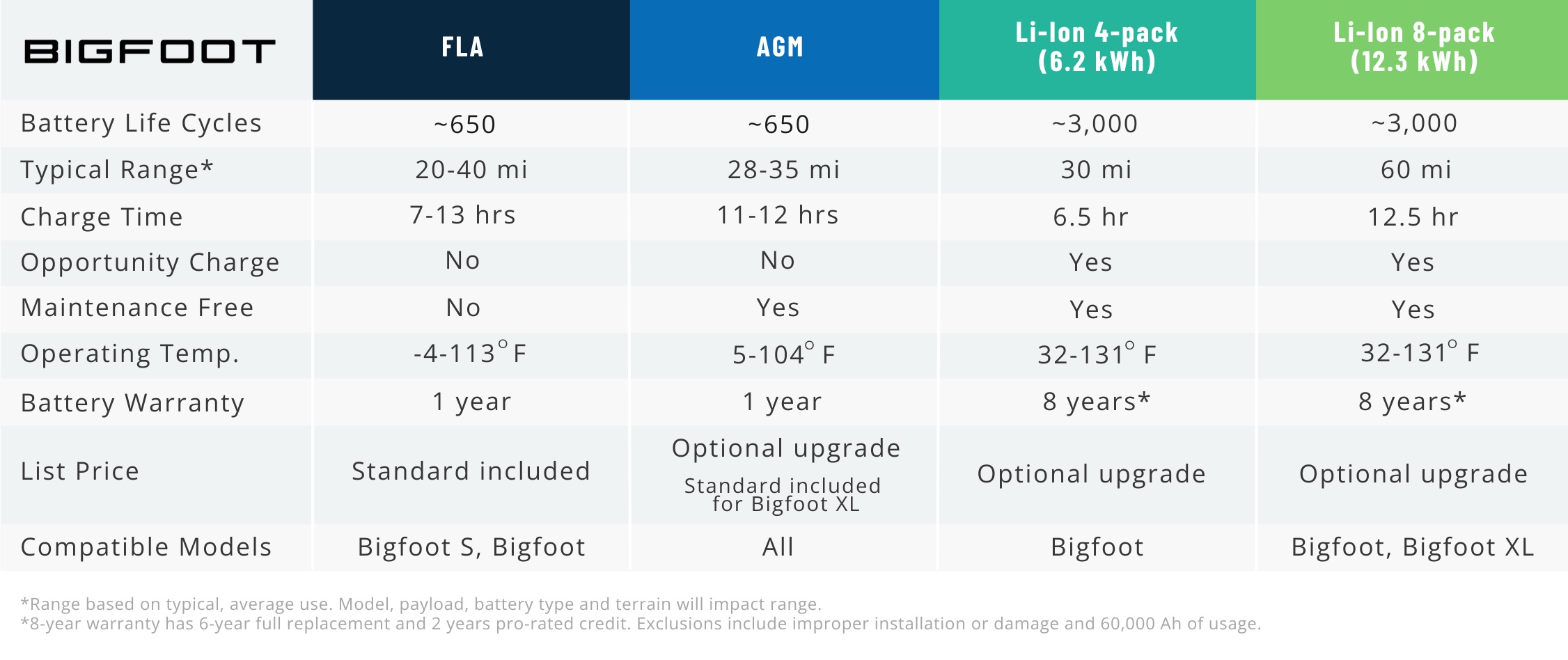

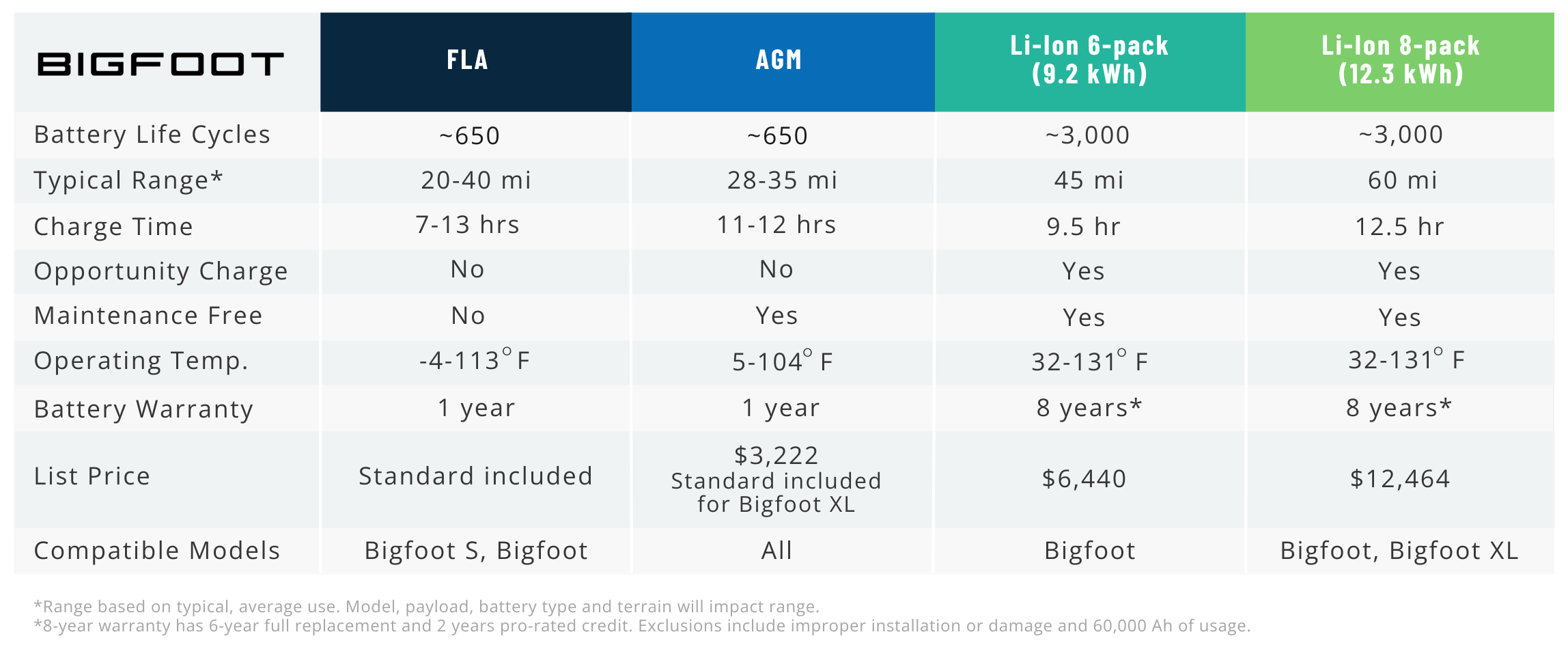

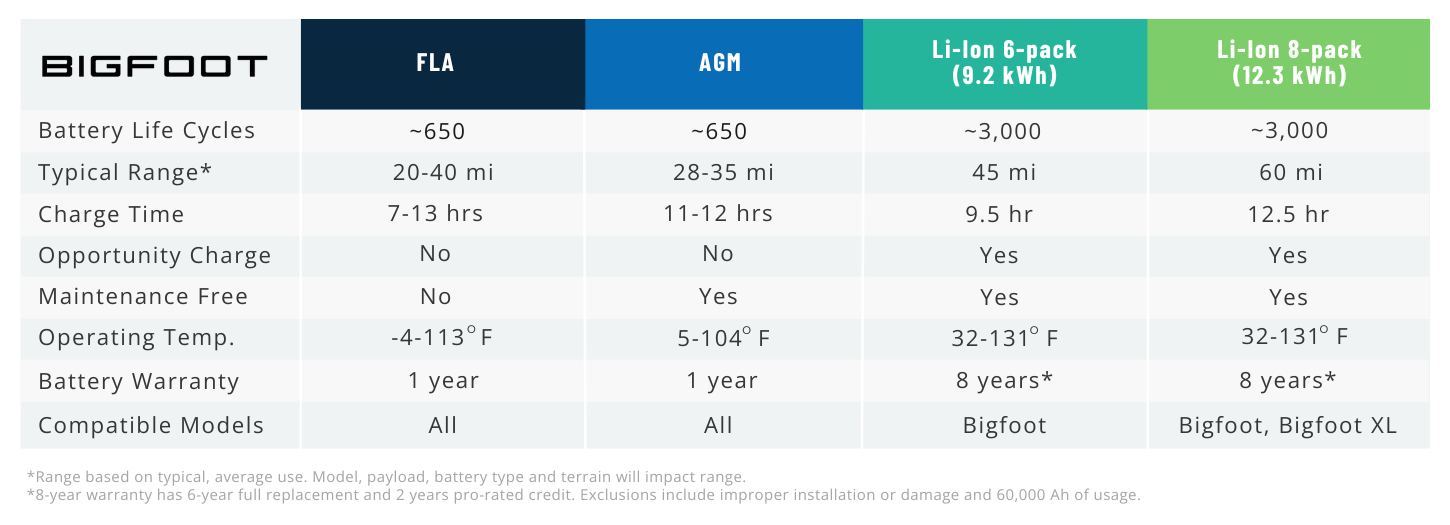

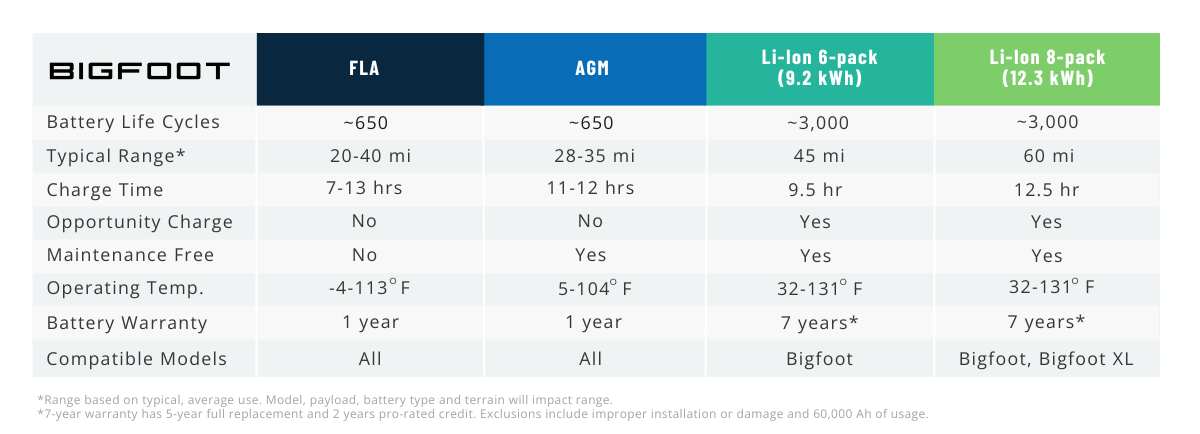

Choose Your Battery

Choose a battery pack based on what matters most to you—price, maintenance, replacement costs, lifetime charge cycles, weight, range or charge time. We have an option for everyone.

Taylor-Dunn Bigfoot burden carrier battery packages

Bigfoot Lineup Specs

Bigfoot S

Voltage
36V

Load Capacity
2,000 lb
(907 kg)

Towing Capacity
5,000 lb
(2,268 kg)

Range
40-50 miles*

Charge Time
8-10 hours*

Turning Radius
110 in

Dimensions (LxWxH)
118.5 x 44 x 51.5 in
(300 x 112 x 131 cm)

Bed Size
44 x 65 in (112 x 165 cm)

Person Capacity
2

Seats
Adjustable bucket, driver seat electrical interlock

Unit Weight
1,450 lb (658 kg)

Motor
6 hp, 4.5 kW AC

Drive Axle
Helical gear, oil bath transaxle, GT automotive differential

Controller
Solid state self diagnostic AC speed controller

Batteries
210 Ah lead acid, or upgrade to maint.-free AGM

Standard Tires
5.70 x 8, load range C, pneumatic

Brakes
Rear hydraulic drum, hand-operated parking brake

Frame
Fully welded, unitized, 12 gauge, smooth skin steel

Bumpers
Heavy-duty steel integrated, front and rear

Suspension
Multi-leaf springs, front and rear

Steering
Rack and pinion, tilted

Lights
Dual LED headlights, taillights, brake lights

Charger
Onboard 1 kW charger

Bigfoot

Voltage
48V, Li-ion available

Load Capacity
3,000 lb
(1,360 kg)

Towing Capacity
7,500 lb
(3,400 kg)

Range
40-60 miles*

Charge Time
10-13 hours*

Turning Radius
137 in

Dimensions (LxWxH)
130.5 x 44 x 51.5 in
(332 x 112 x 131 cm)

Bed Size
44 x 77 in (112 x 196 cm)

Person Capacity
2-4

Seats
Adjustable bucket, driver seat electrical interlock

Unit Weight
1,565 lb (710 kg)

Motor
12.5 hp, 9.5 kW AC

Drive Axle
Helical gear, oil bath transaxle, GT automotive differential

Controller
Solid state self diagnostic AC speed controller

Batteries
210 Ah lead acid, or upgrade to maint.-free AGM or Li-ion

Standard Tires
5.70 x 8, load range C, pneumatic

Brakes
Rear hydraulic drum, hand-operated parking brake

Frame
Fully welded, unitized, 12 gauge, smooth skin steel

Bumpers
Heavy-duty steel integrated, front and rear

Suspension
Multi-leaf springs, front and rear

Steering
Rack and pinion, tilted

Lights
Dual LED headlights, taillights, brake lights

Charger
Onboard 1 kW charger

Bigfoot XL

Voltage
48V, Li-ion available

Load Capacity
3,000 lb
(1,360 kg)

Towing Capacity
10,000 lb
(4,536 kg)

Range
40-60 miles*

Charge Time
10-13 hours*

Turning Radius
145 in

Dimensions (LxWxH)
130.5 x 57 x 52 in
(332 x 145 x 132 cm)

Bed Size
54 x 77 in (137 x 196 cm)

Person Capacity
2

Seats
Adjustable bucket, driver seat electrical interlock

Unit Weight
1,965 lb (891 kg)

Motor
12.5 hp, 9.5 kW AC

Drive Axle
Helical gear, oil bath transaxle, GT automotive differential

Controller
Solid state self diagnostic AC speed controller

Batteries
260 Ah lead acid, or upgrade to maint.-free AGM or Li-ion

Standard Tires
20.5 x 8 x 10, load range E, pneumatic

Brakes
Rear hydraulic drum, hand-operated parking brake

Frame
Fully welded, unitized, 12 gauge, smooth skin steel

Bumpers
Heavy-duty steel integrated, front and rear

Suspension
Multi-leaf springs, front and rear

Steering
Rack and pinion, tilted

Lights
Dual LED headlights, taillights, brake lights

Charger
Onboard 1 kW charger

*Battery pack, payload, towing, and charger type will impact range and charge time.

Bigfoot Popular Options

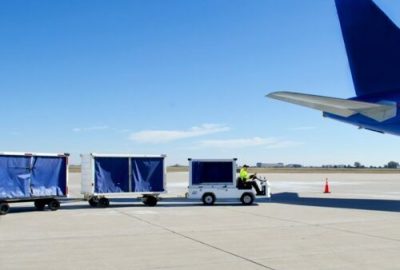

GROUND SUPPORT vehicles

Airpot baggage carrier

Taylor-Dunn Bigfoot vehicles support airport tarmac operations such as baggage handling, lavatory service, potable water service, maintenance and more.
